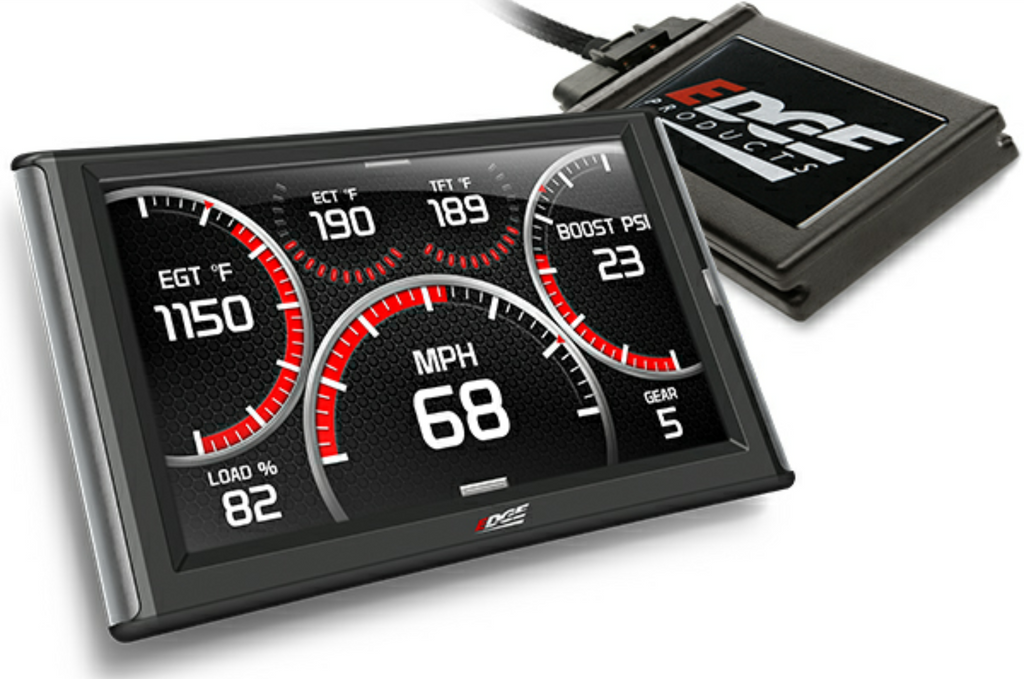

The Edge Products 21502 Juice with Attitude CTS2 Monitor provides your 2006-2007.5 GM 6.6L Duramax LBZ with a sleek new look and state-of-the-art technology.
Allows you to shift-on-the-fly by controlling the Juice module for maximum control and power.
The Juice with Attitude CTS2 includes 5 pre-loaded adjustable on-the-fly power levels. This means you can switch from any of the 5 power levels with just the touch of a button! There's no need to turn your truck off to change tuning with the Juice With Attitude CTS2. With tunes designed for Performance, Tow and Economy, you'll have an option for whatever you're doing with your 6.6L Duramax LBZ
2006-2007.5 6.6L Duramax LBZ Power Levels:
Level 1: 30 HP & 60 lb-ft
Level 2: 40 HP & 80 lb-ft
Level 3: 50 HP & 90 lb-ft
Level 4: 60 HP & 100 lb-ft
Level 5: 80 HP & 130 lb-ft
Level 6: 100 HP & 200 lb-ft (Hot Unlock, purchased separately)
Gauges & Monitoring
The Juice with Attitude CTS2 features a 5" full-color high-resolution swipe screen. With multiple gauge screen layouts and a custom color mixer for gauge arcs, needles and backgrounds, you can custom tailor the CTS2 display to your liking. The CTS2 stays mounted in the cab of your truck and monitors in real time, everything that a complete set of aftermarket gauges would monitor, and more!
2004.5-2005 GM 6.6L Duramax LLY Parameters Monitored
Boost, EGT, Barometric Pressure, Speed MPH, Engine Coolant Temperature, Gear, Intake Air Temperature, Gear, Load %, Slip %, Transmission Temperature, Throttle %, Turbo Boost PSI, RPM, Backdown
The Edge Products Juice with Attitude CTS2 includes a heavy-duty universal suction cup mount for an easy installation. Also available separately, are custom molded dash pods that provide an enhanced factory-like look. For those that prefer pillar mounting, you can also use the Gauge Pillar Adapter to mount the CTS2 Monitor in a pillar-mounted gauge pod of your choice(required adapters, dash pods and pillar pods sold separately.)
Performance Testing, Alerts & Records
Performance and records such as HP & Torque, 0-60 and quarter-mile times; quarter-mile MPH; peak engine temperature, RPM, speed and transmission temperature values. The CTS2 also sounds audible alerts when user-defined values are reached and automatically records the highest value of key parameters.
The CTS2 is compatible with the optional Edge Accessory System (EAS). The EAS allows users to connect to multiple, additional accessories. Expandable options include turbo timer, universal pressure and temperature sensors. (All components sold separately, see related items below)
The Juice with Attitude CTS2 includes automatic defueling to prevent excessive EGT & Boost levels. Along with user-adjustable audible alert settings, you can drive safely with confidence while knowing the Juice with Attitude CTS2 is actively monitoring the parameters on your truck.
The Attitude CTS2 features a built-in video port that allows users to connect the state-of-the-art Edge back-up camera, or other compatible video source directly to the CTS2 unit. (sold separately, see related items below)
The Edge Products MyStyle™ software gives you the ability to personalize your CTS2. You can choose from a variety of Edge custom backgrounds, or simply upload an image of your choice. Size, crop and save to your CTS2 unit for the ultimate in customizability!
NEW! Slim, Sleek Case Design
(5) On-The-Fly Adjustable Power Levels
5" Full-Color, High-Resolution, Swipe Screen
Increased Performance, Efficiency & Driveability
Dynamic Safety Features (Cold Engine Protection, Backdowns & More)
