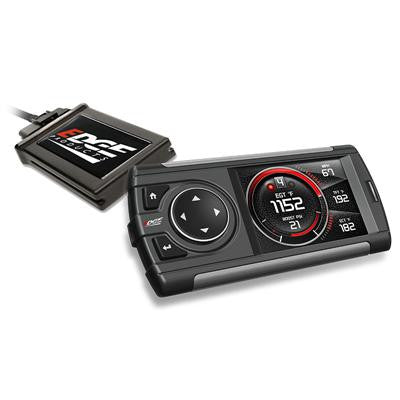

The Edge Products 11400 Juice with Attitude CS2 Monitor for your 1999-2003 Ford 7.3L Powerstroke offers you power, performance, efficiency and functionality all in one easy-to-use package. The CS2 offers the same great features and benefits offered by its predecessor, the CS, all while adding a sleek, new exterior and cutting-edge, high-resolution screen. Along with a whole host of additional features! Complete with MyStyle™ and Edge’s Maintenance Manager Software.
Power LevelsThe Juice with Attitude CS2 includes 5 pre-loaded adjustable on-the-fly power levels. This means you can switch from any of the 5 power levels with just the touch of a button! There's no need to turn your truck off to change tuning with the Juice With Attitude CS2. With tunes designed for Performance, Tow and Economy, you'll have an option for whatever you're doing with your 7.3L Powerstroke.
Level 1: 25 HP & 50 lb-ft
Level 2: 45 HP & 100 lb-ft
Level 3: 55 HP & 125 lb-ft
Level 4: 65 HP & 150 lb-ft
Level 5: 75 HP & 200 lb-ft
Gauges & Monitoring
The Juice with Attitude CS2 features a sleek 2.4" Color Screen which makes it a complete, comprehensive gauge package that stays mounted in the cab of the truck and displays up to eight parameters at a time! Monitor vital engine data, such as EGT's, engine RPM, transmission fluid temperature and engine oil temperature to name a few.
1999-2003 7.3L Powerstroke Parameters Monitored:Accel Pedal Position, Battery Voltage, Engine Oil Temp, Engine RPM, Exhaust Back Pressure, Gear with TCL, ICP Pressure, Injector Pulse Width, Intake Air Temp, IPR Duty Cycle, Manifold Abs Pressure, Mileage Coach, MPG Instant, MPG Average, Time 0-60, Time 1/4 mile, Timing, Trans Temp, Turbo Boost, Vehicle Speed, Waste Gate Control Duty Cycle.
Mounting Options
Each Edge Products Juice with Attitude CS2 includes a heavy-duty universal suction cup mount for easy installation. Also available separately, are custom molded dash pods that provide an enhanced factory-like look. For those that prefer pillar mounting, you can also use the Gauge Pillar Adapter to mount the CS Monitor in a pillar-mounted gauge pod of your choice(adapters, dash pods and pillar pods sold separately. Dash pods coming soon.)
Performance Testing, Alerts & Records
Performance and records such as HP & Torque, 0-60 and quarter-mile times; quarter-mile MPH; peak engine temperature, RPM, speed and transmission temperature values. Sounds audible alerts when user-defined values are reached and automatically records the highest value of key parameters.
Expandable
Compatible with optional Edge Accessory System (EAS) to allow users to connect to multiple, additional accessories. Expandable options include turbo timer, universal pressure and temperature sensors. (EAS system and sensors sold separately)
Safety Features
The Juice with Attitude CS2 includes automatic defueling to prevent excessive EGT & Boost levels. Along with user-adjustable audible alert settings, you can drive safely with confidence while knowing the Juice with Attitude is actively monitoring the parameters on your truck.
MyStyle Software
MyStyle™ software allows you the ability to choose from a variety of Edge custom backgrounds, or simply upload an image of your choice. Size, crop and save to your CS2 unit for the ultimate in customizability.
Features:
- 5 On-the-Fly Adjustable Power Levels
- Maintenance Manager Application
- Increases Performance, Efficiency & Driveability
- Full-Color, High-Res, 2.4" Button-Controlled Screen
- MyStyle Software For Customization
- Internet Updateable (Attitude Monitor Only)
- Built-In Light Sensitivity Meter To Dim Screen As Light Decreases
- Ability To Tune Transmission Shift Points & Shift Firmness
- Read & Clear Diagnostic Trouble Codes
