11-16 Duramax LML Turbo Install Kit

There are a lot of gaskets and seals required to replace the turbocharger and EGR cooler on a 2011 through 2016 LML Duramax engine. Researching and ordering every part individually can be confusing and time consuming. To save you the trouble, we have assembled a kit that includes all the necessary gaskets, o-rings, and banjo seals you'll need to complete the job into one easy purchase.

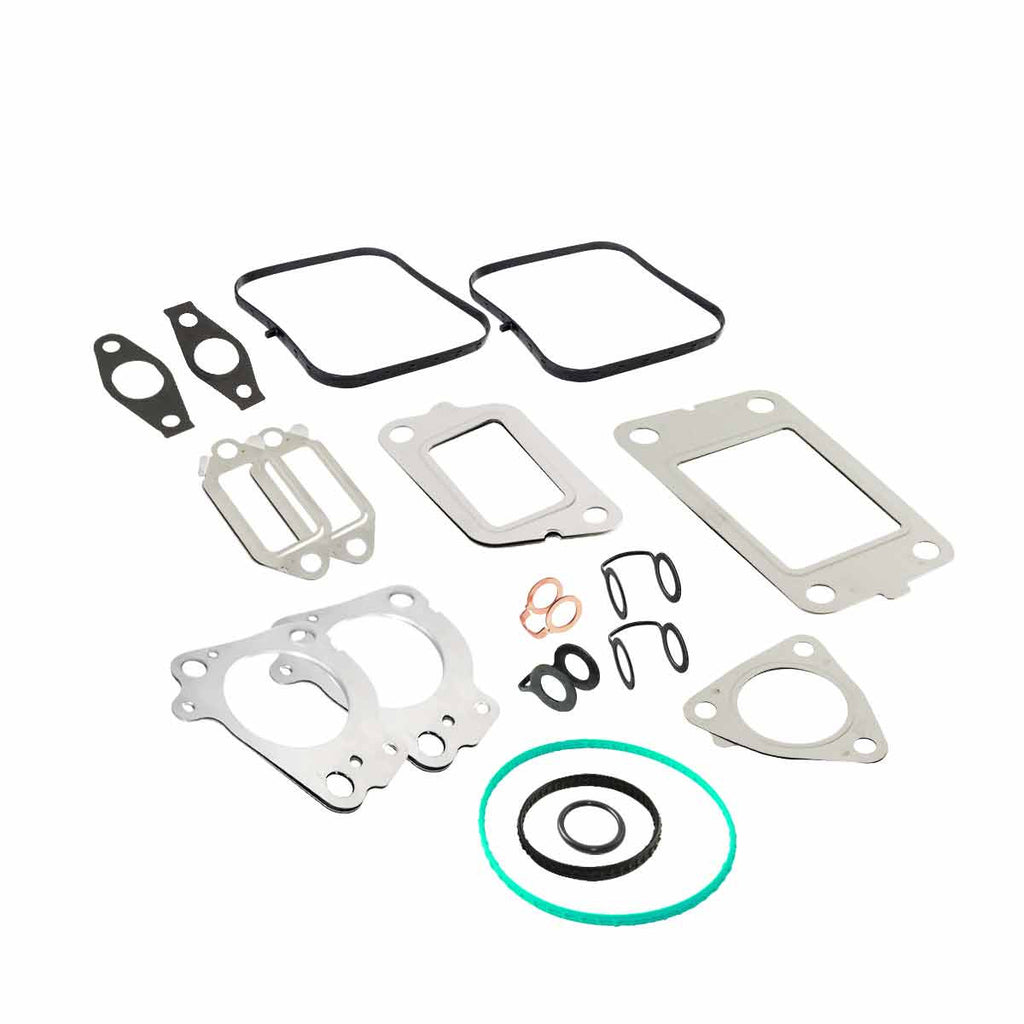

Kit Includes:

• Up Pipe to EGR Gasket (98065519 qty. 1)
• EGR Valve Cooler Gasket (98065520 qty. 1)
• EGR to Y-Bridge Gasket (12635466 qty. 2)
• EGR Valve Gasket (98062923 qty. 1)
• EGR Coolant Pipe Drain Seal (12580720 qty. 1)
• Intake Y-Bridge Gasket (97363570 qty. 2)
• Upper Intake Y-Bridge Seal (12627913 qty. 1)
• Gasket—Turbo to Up Pipe (97192618 qty. 2)
• Turbo Mouthpiece Inlet Seal (12631851 qty. 1)
• Turbo Oil Return Pipe Gasket—At Engine (12637218 qty. 1)
• Turbo Oil Return Pipe Gasket—At Turbo (12637217 qty. 1)
• Banjo Seal—Turbocharger Coolant Pipe (97373522 qty. 2)
• Banjo Seal—Turbo Oil Feed Pipe at Turbo (97331137 qty. 1)
• Banjo Seal—Turbo Oil Feed Pipe at Block (12627897 qty. 1)
