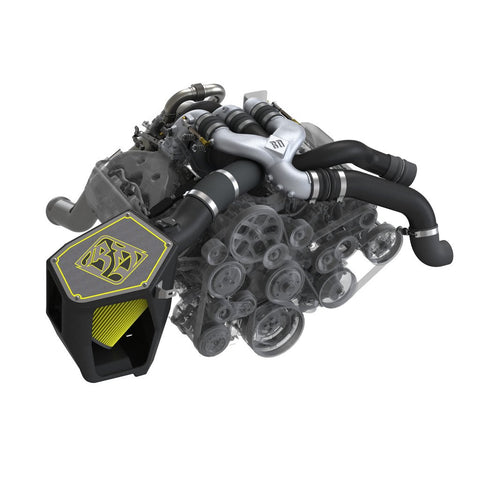

Designed with both reliability and performance in mind, the BD scorpion kit grants you the opportunity to take advantage of high-flow Borg Warner S300 SXE or S400 SXE turbochargers. The turbocharger is mounted directly to a BD cast iron T4 manifold, built to maximize both durability and performance. To minimize EGT's, a smooth-wall Y-bridge evenly distributes air to all eight cylinders. From stock hp levels, to those wanting to push past 700hp, the BD Scorpion Kit is the perfect combination of performance a reliability.
- Larger turbochargers available for even higher horsepower
- Race tune required (not included)
- BD 90-deg compressor cover with 2.75in (S300) or 3.00in (S400) outlet
- BD high performance T4 flanged exhaust manifold, stainless heatshield and crossover tube
- BD billet aluminum pedestal block with oil drain and feed. Includes 1/8 NPT water feed port if using water cooled waste gate (Or CHRA).
- BD high strength A356 aluminum intake horns
- BD high strength A356 Y-Intake with meth, NOS and boost pressure sensor bosses
- BD custom 4in cold air intake with 8in OD high-flow velocity stacked filter
- BD complete high flow aluminized 4in downpipe that mates to stock flange position for easy install to stock or aftermarket exhaust systems
- BD cold air charge tubes, 3.5in intercooler to intake tubes with pressure sensor provision
- Stainless heat shield keeps heat in and intake temperatures down
- Incorporated dual 1/8 NPT EGT ports as well as the provision to use a factory EGT sensor
- BD Boot Lock ready with boss positions on intake and outlets
- Compatible with stock or aftermarket water-to-air intercooler
- 9 Hours
- 12,000 Miles
- Wheel burst resulting from over speeding is not warrantable
- 2015-up model years require 1045805 application kit
- Not for sale on licensed California vehicles
- Requires tuner with special programming due to VGT removal: EZ Lynk tuned by PPEI, or SCT (custom tuned)
