06-07 Duramax LBZ HSP Deluxe MAX Air Flow Bundle Kit

  • Sale
  • Regular price $2,796.64


** 4-5 Week Build Time Normally**

Looking for a kit that has it all? Featuring a mandrel-bent 4.5-inch intake tube for massive airflow gains, with HSP's signature heat shield box eliminating unwanted hot air entering the cold air intake. For every 1-degree increase in intake air temperature will result in a 3hp loss. This kit also features HSP's high flow turbo mouthpiece.

This turbo mouthpiece will give you the ability to reroute your factory PCV system and remove the factory resonator box, eliminating unwanted engine oil gumming up the turbo and intake system (PCV re-route sold separately see 003-1-HSP). Also included is our 3-inch mandrel bent hot side and cold side tubes with our easy to install two-piece Y-bridge with race-proven 5 layer silicone boots so you can be ensured a great fit that won't let you down. The factory hot side intercooler tube is only 2.25 inches in diameter and has a 90-degree boot at the intercooler that is prone to failure.

With this routing there is a possibility of the hot side intercooler tube rubbing on the power steering line, causing the line to rub a hole in the tube resulting in a boost leak. HSP's solution to this problem is to run the hot side tube directly into the intercooler resulting in lower temperatures, better airflow, and added clearance in tight places.

Ours bolted together two-piece Y-bridge will make installation a breeze and ensure a leak-free seal that won't leave you on the side of the road. To help get the exhaust gases out of the engine, this kit includes our factory replacement 2 inches up pipes. Our up pipes use .120 inch wall tubing with the toughest bellows on the market to ensure they last as long as your truck.

When it comes to styling we have included our forward-facing thermostat housing with coolant return to help keep your VGT turbo running cool. Is your factory coolant tank starting to show its age? Also included is our factory replacement coolant tank to keep your engine bay looking good. Our coolant tank features an all-aluminum design with an incorporated low coolant sensor.

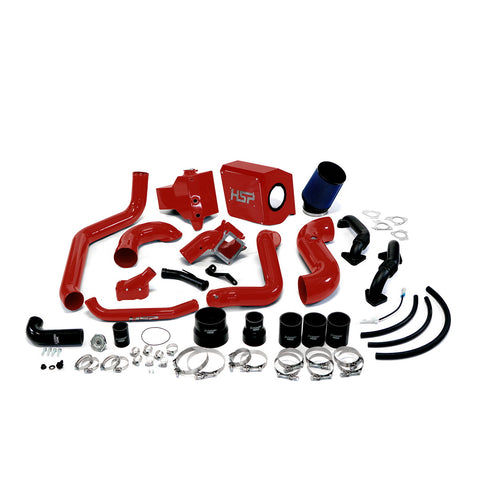

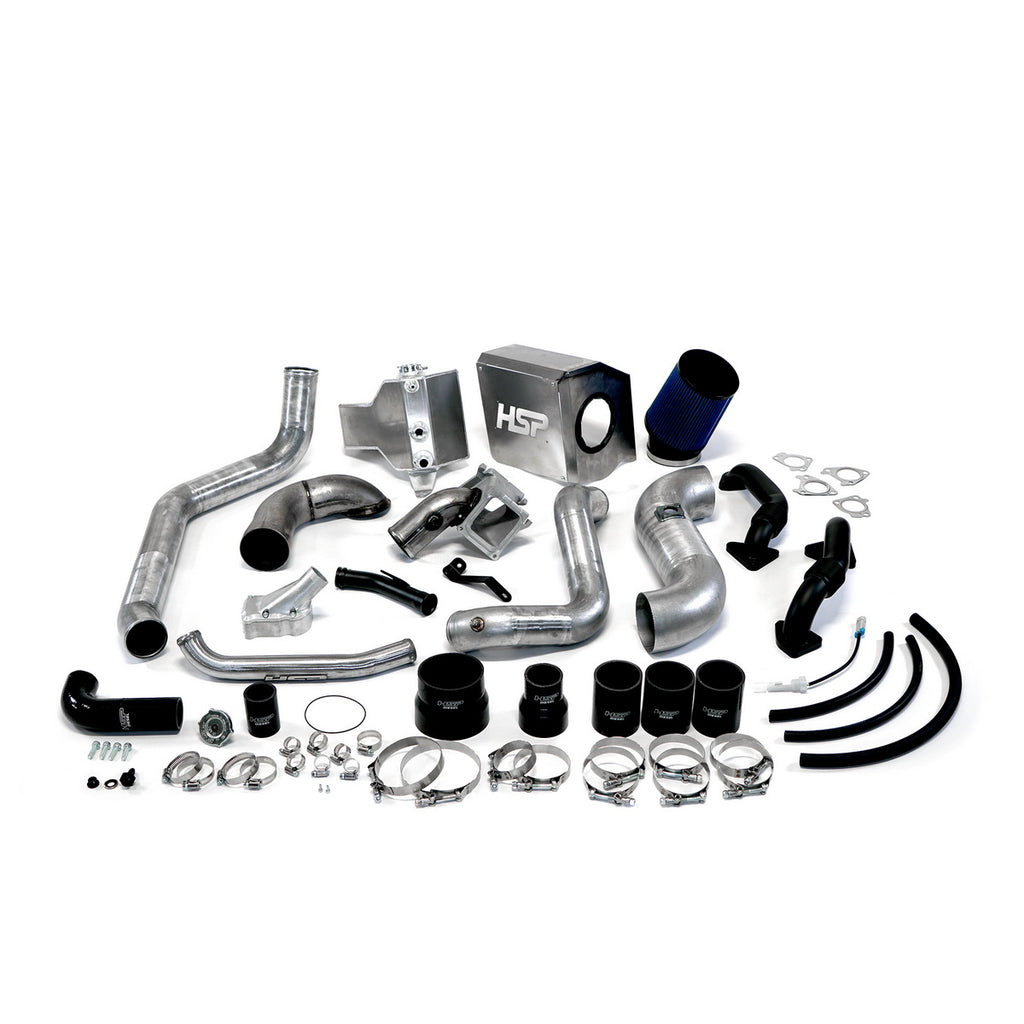

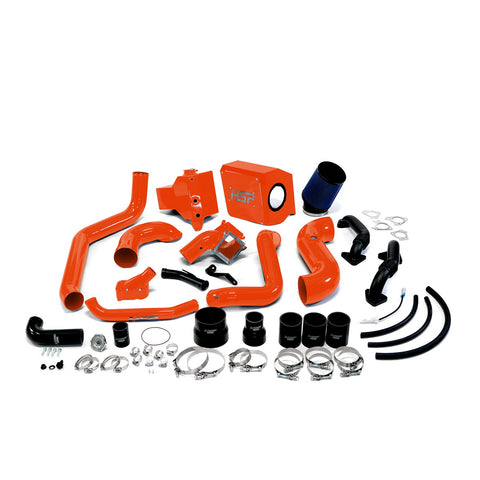

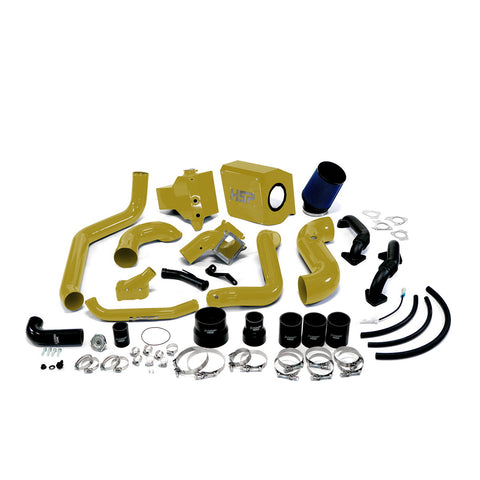

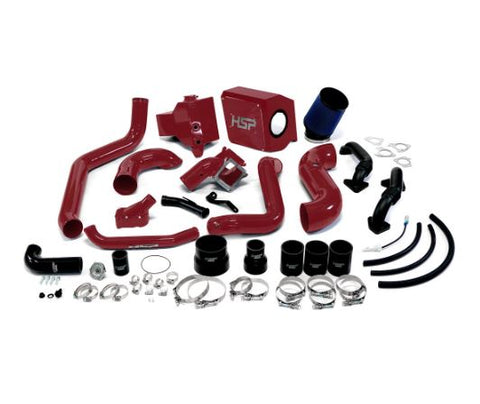

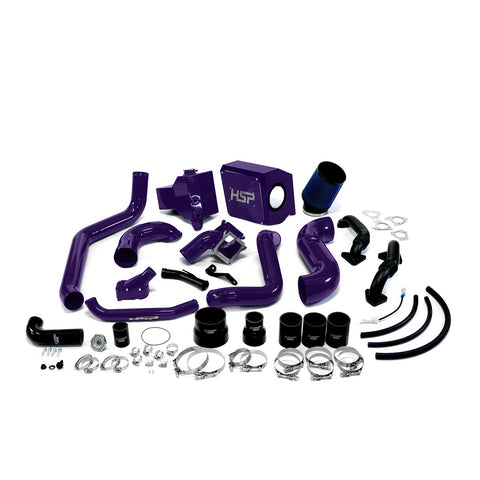

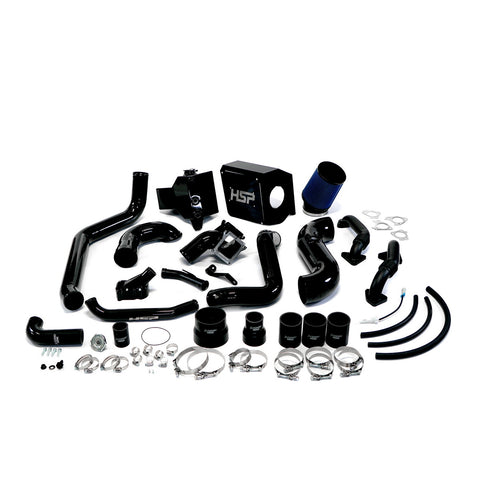

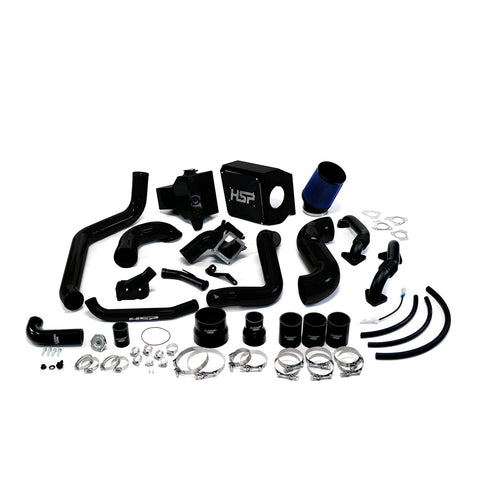

Included Components:

  • 3x 3" x 4" Straight boot
  • 7x 3" T-bolt Clamp
  • 1x 2.25" - 3" Reducer boot
  • 1x 2.25 T-bolt Clamp
  • 1x 1/8" NPT Brass Plug
  • 1x Bridge neck O-ring
  • 2x 5/8" Worm Gear Clamp
  • 2x Bridge neck stud
  • 2x Bridge Neck 12-point Nut
  • 2x M4x.7x10mm Bolt
  • 3x 10-32 x 3/8" Button Head Screws
  • 4x 1/8" Aluminum Rivet
  • 1x 4" - 4.5" Reducer Boot
  • 1x 4" t-bolt clamp
  • 1x 4.5" T-bold Clamp
  • 1x 4.5" Filter
  • 1x Turbo inlet o-ring
  • 1x Radiator cap
  • 5x 1/2" Worm gear clamp
  • 1x 1" Worm gear clamp
  • 1x 1/2" NPT float switch
  • 1x Low Coolant sensor
  • 1x Thermostat housing o-ring
  • 4x M8x1.25-25mm Socket cap bolt
  • 4x M6x1.0-18mm Socket cap bolt
  • 1x M14x1.5 to 3/8" Hose Barb
  • 1x M14x1.5 Metric Port Plug
  • 1x Metric Bonded Seal 14mm
  • 1x 1.75" x 3" Straight Boot
  • 1x 1.75" 90° Boot
  • 4x 1 3/4" Worm Gear clamps
  • 2x Up-Pipe Gaskets (Manifold Side)
  • 2x Up-Pipe Gaskets (Turbo side)

Compatible with:

LBZ: 06-07 VIN Code 2 or D
HOW DO PEOPLE KNOW VIN CODE? Engine code is dictated by the 8th character of the VIN number. The 10th character is the year of the truck.


Cannot ship to California
