04-07 Cummins 5.9 HE351CW Billet Drop In Turbo

  • Sale
  • Regular price $799.99

HE351CW Turbocharger With Billet Wheel Red

The Components Found In Our Turbos Are Sourced From The World’s Leading Manufacturers. Built To Exceed OEM Quality Standards. We Provide Exactly The Parts You Need For Your 5.9L Cummins HE351CW Turbo. No More, No Less. This Turbo Was Designed To Completely Replace Your Worn Out Stock HE351CW. From Start To Finish.


5.9L 04.5 – 07 Dodge Ram Cummins

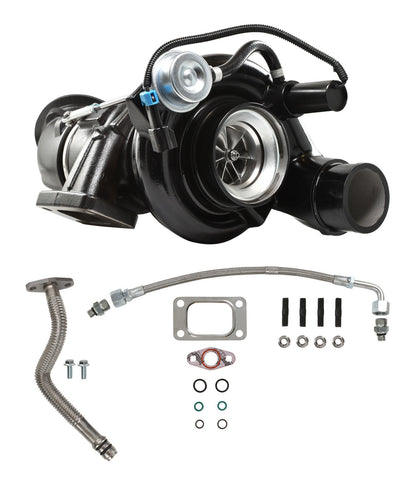

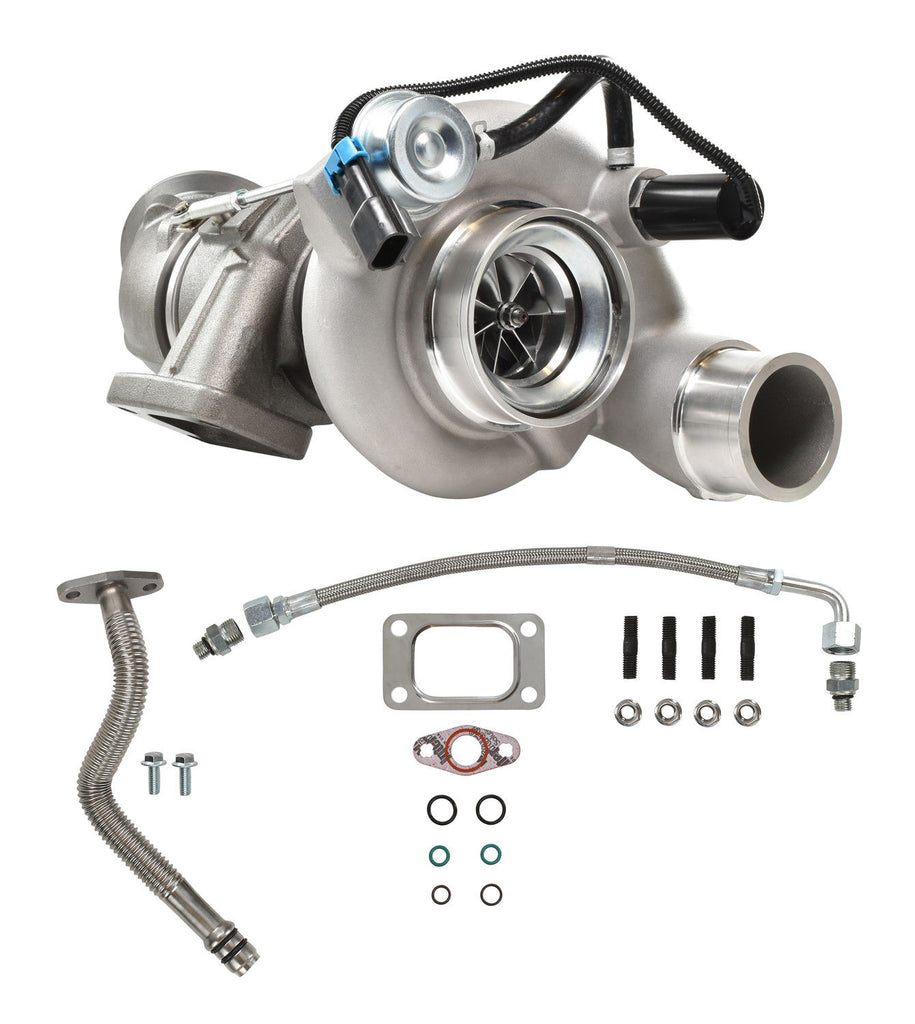

5.9L HE351CW Turbocharger, Turbo Feed And Drain Lines With Fittings, Install Kit With Gaskets, O-Rings, Hardware


Improved Longevity In High Boost Applications, 5 – 7 PSI Boost Increase, Eliminates Compressor Surge, Improved Performance At High Boost Levels, Severe-Duty Journal Bearings and Thrust Collar

Power Gains

Tuned Engines: Up To +40 HP / +60 ft/lbs Torque

Stock Engines: Around +20 HP / +30 ft/lbs Torque


Increased Turbo Boost: Up to 30+ PSI Boost With Wastegate Modifications

Billet Compressor Wheel Specs

Inducer/Exducer/Tip: 60/86/90.5

Blades: 7+7

Turbine Shaft Specs

Blades: 12

Inducer/Exducer/Tip Height: 65/58/10.5mm

Journal/Stem: 11mm


Compressor Housing: Red Powder Coating

Center Section & Exhaust Housing: Black Ceramic Coating

Coating Benefits

Our Testing Has Proven Ceramic Coating The Turbo Offers Several Performance Benefits; Keeps The Turbo From Radiating Heat Reducing Under-The-Hood Temperatures By Up To 70°F Lowering Intake Air Temperatures, Reduces Turbo Lag And Improves Spool-Up Times By Keeping The Turbine Inlet Gases Hot.

Brass 360 Thrust Bearing

Brass Dissipates Heat Faster And Provides A Longer Life Span VS Steel. Improved Lubrication With 6 Oil Passages VS OEM 270 Style Thrust Bearings With 5 Oil Passages.

Step Gap Oil Seal

Tighter Tolerances For Superior Sealing Minimizing Oil Leakage From The Bearing Housing VS Standard OEM Turbine Shaft Oil Seals.

Not For Sale In The State Of California! California Residents Do Not Purchase, Your Order Will Be Canceled. There Are No Exceptions So Please Don’t Ask!!!


This Is A “Race Only” Product Used Solely For Competition. Its Use Is Limited To Closed-Course And Open-Course Racing That Is Formally Sanctioned By A Recognized Racing Organization. Any Other Use Including Recreational Off-Road Use Could Be In Violation Of Local, State And Federal Laws. Not For Vehicles
Registered For Use On The Highway Or Street. Due To Its High-Performance Nature, This Product Will Void Vehicle Manufacturers Warranty And Can Cause Engine Damage. Will Require Aftermarket Tuning To Turn Off Check Engine Light After Installed. Direct Diesel Inc. Is Not Responsible For Misuse Of Its Products. By Installing This Product, You Release Direct Diesel Inc. Of Any And All Liability Associated With Its Use.


Ask a Question
  • Does this turbo come with any warranty?

    Yes 1 Year Warranty
