04-05 Duramax LLY Pusher Intakes Cold Side Y Bridge Fix

  • Sale
  • Regular price $349.99


This product is not emissions compliant. Off-road use only.

The Pusher Max Passenger-Side Charge Tube is the ultimate solution to improving air delivery to your factory two-piece intake bridge. Unlike other options on the market the Pusher Max charge tube properly supports the intake bridge, preventing any separation and subsequent boost leaks.

Our charge tube is constructed of 3” mandrel bent tubing with CNC-machined and laser-cut flanges, and features a heavy-duty bracket support system.

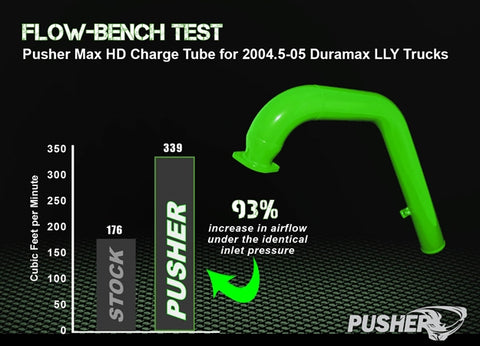

The entire assembly is fully Fully TIG welded with precise settings to produce beautiful welds and optimal penetration without impacting air flow. Super HD y-bridge support system proven to hold the factory two piece y-bridge together at over 70 PSI of boost. 3" mandrel bent tubing supplies your engine with 93% more air and follows a 6% shorter flow path than the OEM parts it replaces.

  • CNC machined and laser cut flanges for flawless mounting to your Duramax engine.

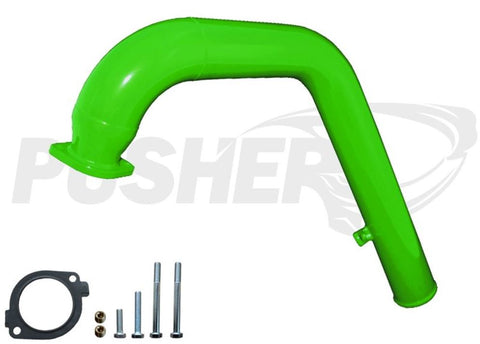

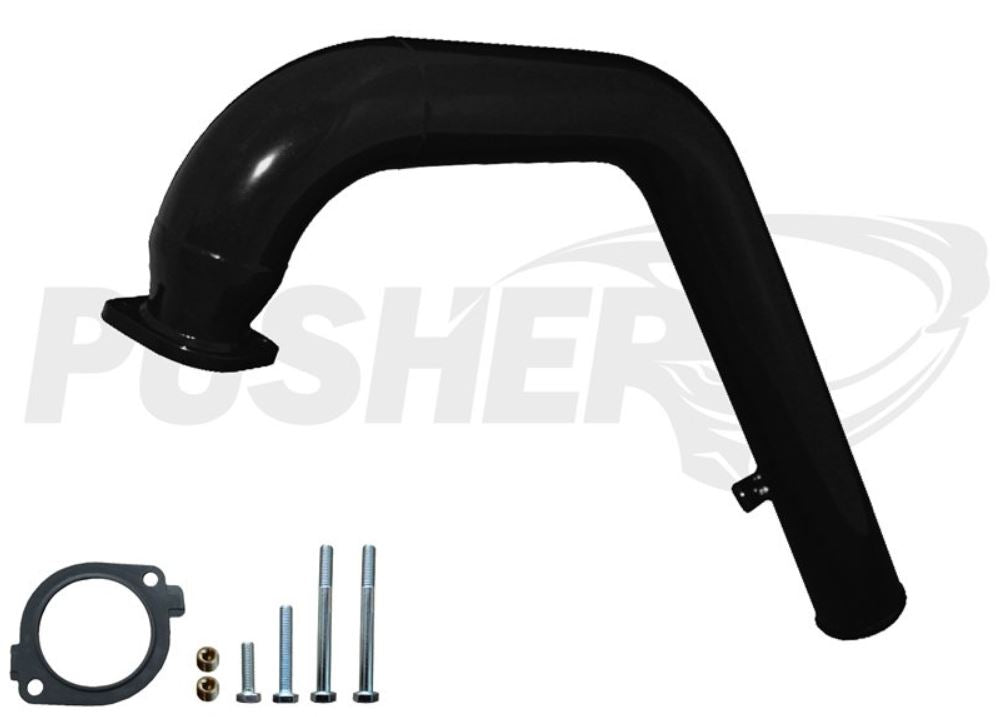

  • Included is all of the hardware, gaskets, and wire loom for a complete install.
  • Additional options include various powder coat colors, and extra ports.

This is the same Max HD Charge Tube used in our compound turbo system for the LLY trucks. Together they have been tested and proven on trucks ranging from 300hp trucks to 1000hp+ plus drag and mud race trucks.


QUESTIONS & ANSWERS

Ask a Question
  • What else is needed to install this kit, And I have the Flex-Lite electric fans installed, will this kit clear the fans. Thanks

    This kit deletes EGR, so you would need LB7 style uppipe of Block off plate and coolant hose, we sell a EGR delete kit that would come with those parts. It should clear the fans because the intercooler tube goes to the outside of radiator.
