A Whole New Attitude
The Edge Products 31501 Juice with Attitude CTS2 Monitor provides your 2001-2002 Dodge 5.9L Cummins with a sleek new look and state-of-the-art technology. The Juice with Attitude CTS2 sets the standard for power, control, and style. The Attitude CTS2 is an in-cabin controller that not only monitors vital vehicle parameters but allows you to shift-on-the-fly by controlling the Juice module for maximum control and power.
The Juice with Attitude CTS2 includes 5 pre-loaded adjustable on-the-fly power levels. This means you can switch from any of the 5 power levels with just the touch of a button! There's no need to turn your truck off to change tuning with the Juice With Attitude CTS2. With tunes designed for Performance, Tow and Economy, you'll have an option for whatever you're doing with your 5.9L Cummins!
2001-2002 Dodge 5.9L Cummins Power Levels:
Level 1: 40 HP & 150 lb-ft
Level 2: 60 HP & 200 lb-ft
Level 3: 80 HP & 250 lb-ft
Level 4: 100 HP & 300 lb-ft
Level 5: 120 HP & 350 lb-ft
Gauges & Monitoring

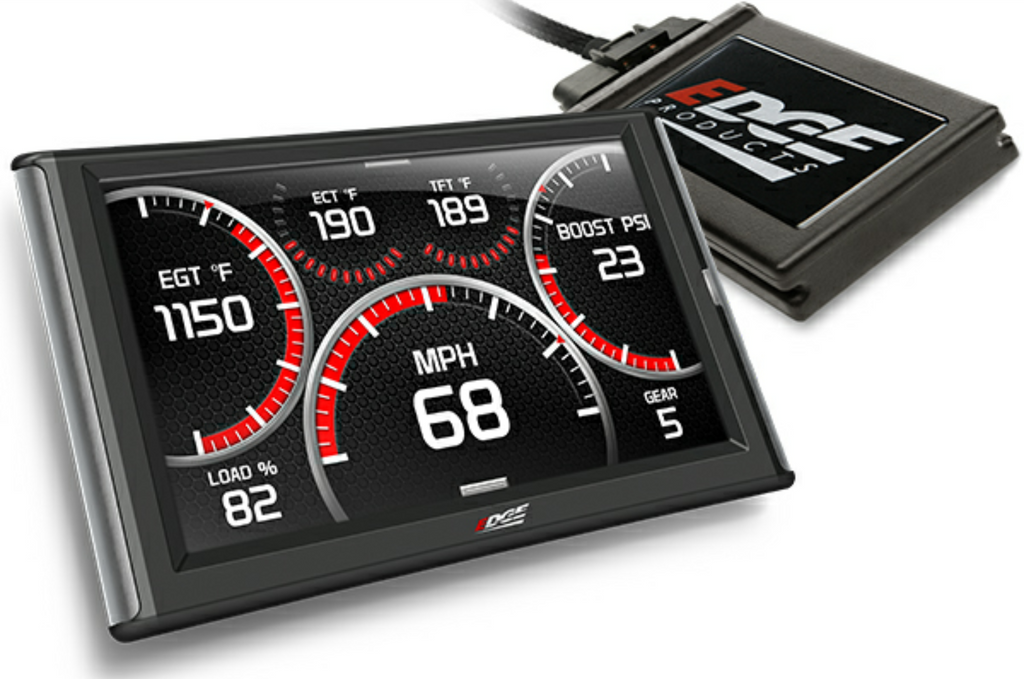

The Juice with Attitude CTS2 features a 5" full-color high-resolution swipe screen. With multiple gauge screen layouts and a custom color mixer for gauge arcs, needles and backgrounds, you can custom tailor the CTS2 display to your liking. The CTS2 stays mounted in the cab of your truck and monitors in real time, everything that a complete set of aftermarket gauges would monitor, and more!
2001-2002 Dodge 5.9L Cummins Parameters Monitored
Backdown %, Voltage, EGT (exhaust gas temp), Engine Coolant Temp, Engine Fuel Pressure (pressure of the fuel lift pump), Fuel Temperature (measured in the VP44 injector pump), Intake Air Temp, Engine Load % (only on later models), Module Temperature (internal temperature of the module), RPM, Speed MPH, Throttle %, Transmission Temp, Turbo Boost Pressure, Oil Pressure
The Edge Products Juice with Attitude CTS2 includes a heavy-duty universal suction cup mount for an easy installation. Also available separately, are custom molded dash pods that provide an enhanced factory-like look. For those that prefer pillar mounting, you can also use the Gauge Pillar Adapter to mount the CTS2 Monitor in a pillar-mounted gauge pod of your choice(required adapters, dash pods and pillar pods sold separately.)
Performance Testing, Alerts & Records
Performance and records such as HP & Torque, 0-60 and quarter-mile times; quarter-mile MPH; peak engine temperature, RPM, speed and transmission temperature values. The CTS2 also sounds audible alerts when user-defined values are reached and automatically records the highest value of key parameters.
The CTS2 is compatible with the optional Edge Accessory System (EAS). The EAS allows users to connect to multiple, additional accessories. Expandable options include turbo timer, universal pressure and temperature sensors. (All components sold separately, see related items below)
The Juice with Attitude CTS2 includes automatic defueling to prevent excessive EGT & Boost levels. Along with user-adjustable audible alert settings, you can drive safely with confidence while knowing the Juice with Attitude CTS2 is actively monitoring the parameters on your truck.
The Attitude CTS2 features a built-in video port that allows users to connect the state-of-the-art Edge back-up camera, or other compatible video source directly to the CTS2 unit. (sold separately, see related items below)
The Edge Products MyStyle™ software gives you the ability to personalize your CTS2. You can choose from a variety of Edge custom backgrounds, or simply upload an image of your choice. Size, crop and save to your CTS2 unit for the ultimate in customizability!
NEW! Slim, Sleek Case Design
(5) On-The-Fly Adjustable Power Levels
5" Full-Color, High-Resolution, Swipe ScreenIncreased Performance, Efficiency & Driveability
Dynamic Safety Features (Cold Engine Protection, Backdowns & More)
