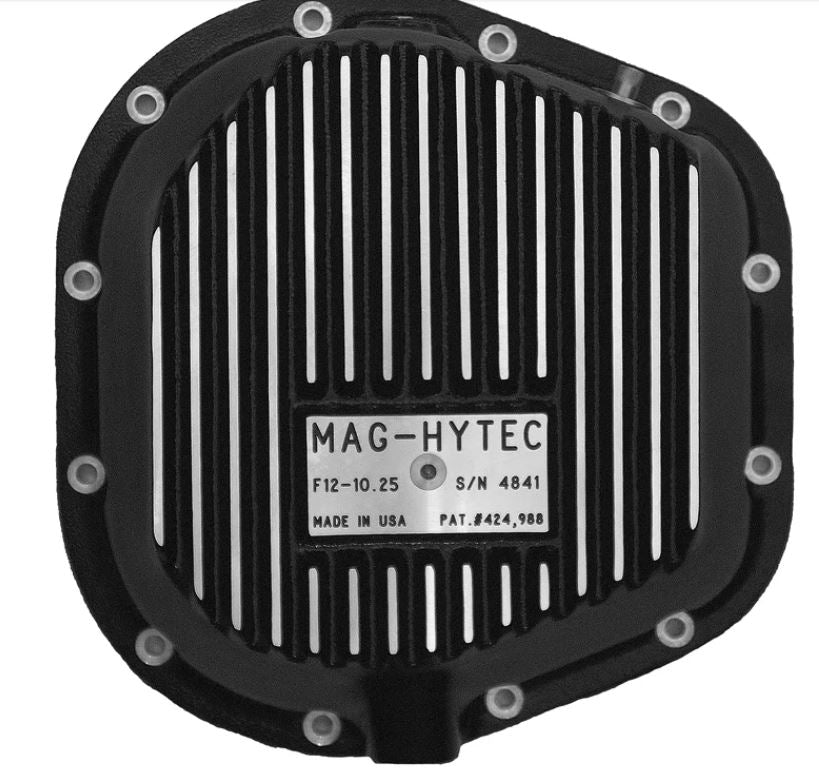

Mag-Hytec heavy-duty Differential Covers provide increased lubricant and cooling capacity for hard working recreational and service vehicles. Mag-Hytec covers and pans set your vehicle apart in both aesthetics and function - cast in A356-T6 aluminum and texture powder coated black with machined cooling fins. As the metallic components in transmissions and axles wear, they generate very fine particle debris that becomes suspended in the lubricating oil. All Mag-Hytec covers come with a suspended magnet that acts as a filter to contain these particles, keeping the fluid cleaner and extending component life. Periodic checking and cleaning of the magnet is recommended for maximum fluid service life. Each unit is fitted with ARP 568 O-rings for superior sealing. All hardware is 303-type stainless steel, in most applications no gasket or sealant is required, and all Mag-Hytec parts are covered by a lifetime limited warranty. Every Mag-Hytec differential cover comes fully assembled with everything you need to install it yourself. Depend on Mag-Hytec when you're pulling a heavy load!!
Every Mag-Hytec differential cover comes fully assembled with everything you need to install it yourself.
Total Capacity - 6 Quarts
Year | Model | Description | Capacity | Part # |
---|---|---|---|---|
1998-2007 | Excursion 7.3L/6.0L Diesel | 12 Bolt - 10.25" &10.5" Rear Diff Cover. Single Rear Wheel Only | 6 Qts | F12-10.25-A&10.5 |
2001-2007 | Excursion 6.8L | 12 Bolt - 10.25" &10.5" Rear Diff Cover. Single Rear Wheel Only | 6 Qts | F12-10.25-A&10.5 |
1986-present | F-250/F-350 7.3L/6.0L/6.4L/6.7L Diesel | 12 Bolt - 10.25" &10.5" Rear Diff Cover. Single Rear Wheel Only | 6 Qts | F12-10.25-A&10.5 |
Includes:
- Bolt kit
- Drain Plug
- Dip Stick.
Features:
- High Capacity Differential Covers

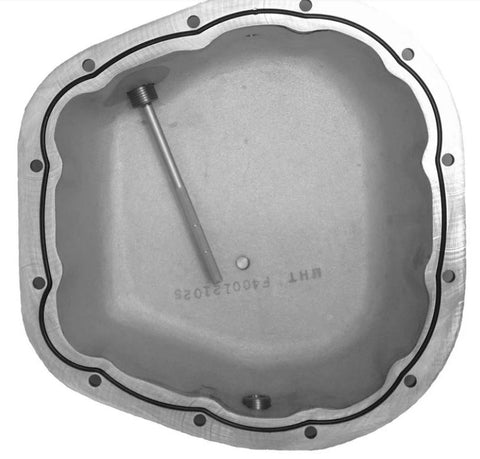

- Magnetic drain plug and anodized aluminum dipstick with magnetic insert
- O-rings require no gaskets or sealant
- Routine lube maintenance without removing the differential cover
- 1/8 NPT temperature sender port
- 303 stainless steel hardware
- Lube level reference plug
- Finned aircraft aluminum housing
- Requires allen key wrenches (included) for installation and service
- Fits with most factory suspension systems and aftermarket anti-sway bars
